Product Introduction
CS-CL-05 pulsed 100W luggage is the new generation product with a high technology that applies for the purpose of the material surface cleaning application, which is easily to be set up, operated and automated. No need of chemistry, water or other working medias, the equipment can be also applied for removing the resin, grease, stains, dirt, rust material, coating, coating and paint. This device can be auto-focused on a specified area of the target surface of the material, which leads to a high performance of cleanliness result.
Product features
♦Non-contact cleaning, no damage to parts matrix.
♦Precise position and size selective cleaning;
♦No need of any chemical cleaning liquid, no consumables, safe and environment friendly.
♦Simple operation, can achieve automatic cleaning by handheld or with manipulator.
♦Ergonomic design, can greatly reduce operation labor intensity.
♦High cleaning efficiency and save time.
♦Operation system is stable and nearly requires no maintenance.
♦Mobile battery module optional.
Advantages
♦No chemical solution is needed, and there is no environmental pollution caused by chemical cleaning. It is a new technology, new process and new method to replace pickling and phosphating.
♦After cleaning, the waste material forms solid powder, which is small and easy to handle, does not cause re-pollution to the environment, and is environmentally friendly. It is the reform and development trend of industrial cleaning.
♦Laser cleaning is non-contact. It can be transmitted through optical fiber and combined with robots or manipulators to conveniently realize long-distance operation. It can clean parts that are not easily reached by traditional methods. Good choice.
Product Application
Widely used shipbuilding, auto repair, rubber molds, high-end machine tools, rails and environmental protection industry.
Product specification
| Operating Evironment |
| Power supply | Single-phase 220V±10%, 50/60Hz AC |
| Overall power consumption | ＜700W |
| Operating Temperature | 5℃～40℃ |
| Operating Humidity | ≤80% |
| Optical parameters |
| Average laser power | ≥100W |
| Power instability | ＜2% |
| Laser working mode | Pulse |
| Pulse width | 90-120ns |
| Maximum single pulse energy | >1mJ |
| Peak power | >12kW |
| Beam quality (M2) | ≤1.8 |
| Power adjustment range (%) | 10-100(The gradient is adjustable) |
| Repetition frequency (kHz) | 1-200 (The gradient is adjustable) |
| Fiber length | 3m (customizable) |
| Cooling way | Water-cooling |
| Cleaning head parameters |
| Scanning range (length * width) | Two-way 5mm~120mm,Continuously adjustable |
| Scanning speed | Maximum not less than 15m/sec |
| Scanning mode | Six: straight line, rectangle, circle, helix, double helix, free mode |
| Focal length of field lens (mm) | 160mm/210mm |
Application samples
Product Tags:
|
|

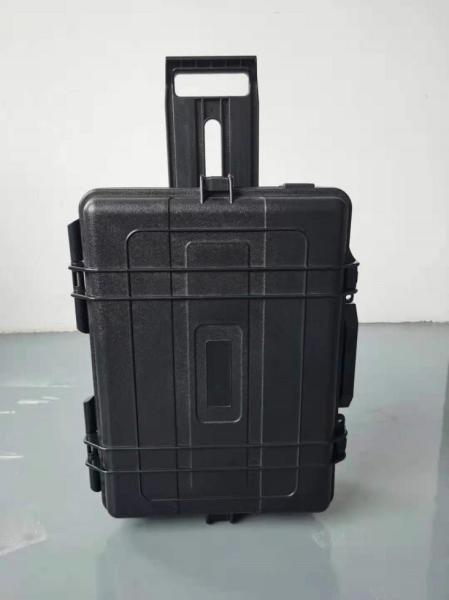

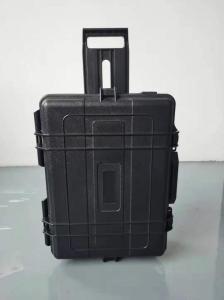

Luggage Portable Fibre Laser Cleaner Machine For Rust 100W Pulsed Images
|
