Product introduction

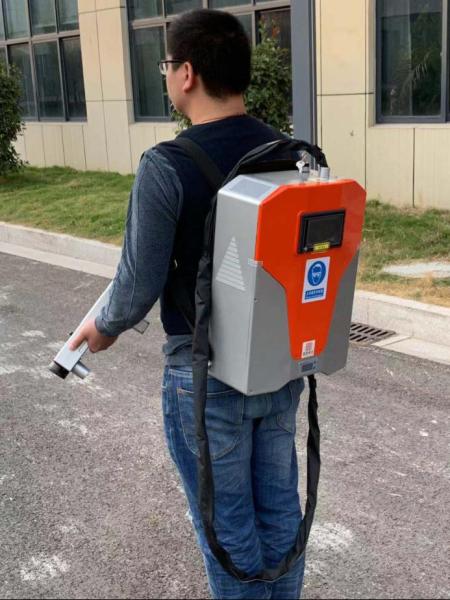

CS-CL-03 pulsed 50w backpack is the new generation product with a high technology that applies for the purpose of the material surface cleaning application, which is easily to be set up, operated and automated. No need of chemistry, water or other working medias, the equipment can be also applied for removing the resin, grease, stains, dirt, rust material, coating, coating and paint. This device can be auto-focused on a specified area of the target surface of the material, which leads to a high performance of cleanliness result.
Product features
♦No need of any chemical cleaning liquid, no consumables, safe and environment friendly
♦Simple operation, can achieve automatic cleaning by handheld or with manipulator
♦Ergonomic design, can greatly reduce operation labor intensity
♦Mobile battery module optional
Advantages
♦Compact and versatile, the cleaning machine are designed for the cost-effective treatment of small areas that require gentle high precision cleaning, de-coating and other surface treatments.
♦No other media is required for treating parts. These laser systems are easy to operate and virtually maintenance-free.
♦The basic system consists of the laser source, with controls and cooling, a fiber optic for beam delivery and a processing head. A simple main power supply is used for operation with a very low energy demand..
Product specification
| Operating Evironment |
| Power supply | Built-in battery, continuous work 2.5h single-phase 220V±10%, 50/60Hz AC (optional) |
| Overall power consumption | ＜300W |
| Operating Temperature | 5℃～40℃ |
| Operating Humidity | ≤80% |
| Optical parameters |
| Average laser power | ≥50W |
| Power instability | ＜2% |
| Laser working mode | Pulse |
| Pulse width | 10-500ns adjustable |
| Maximum single pulse energy | 1.25mJ |
| Peak power | 15kW |
| Beam quality (M2) | ≤1.8 |
| Power adjustment range (%) | 10-100(The gradient is adjustable) |
| Repetition frequency (kHz) | 1-1000 (The gradient is adjustable) |
| Fiber length | 1.8m (customizable) |
| Cooling way | Water-cooling |
| Cleaning head parameters |
| Scanning range (length * width) | 0mm~300mm,Continuously adjustable |
| Scanning frequency | 10Hz~300Hz,Continuously adjustable |
| Focal length of field lens (mm) | 160mm |
| Focal depth | Maximum of 20mm |
Application samples
