9XXnm 30W Uncooled Multimode Laser Diode Module

Brand Name : CS

Model Number : 300W 915nm 105um

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Brand : CS

Application : bump source material processing

Output power (W) : 300W 915nm 105um

Local Service Location : None

warranty period : 1 year

After Warranty Service : Online support Spare parts Field maintenance and repair service

Contact Now

Product introduction

TY-9XX+/-10NM-30.0W-25C-105-0.22NA--T3S diodelasers employing professional coupling technology, that enjoy multipleadvantages, e.g., compact design, stable output power, high power, highefficiency and co nvenient packaging. These laser diode modules canprovide solutions for fiber laser applications and direct suppliers.

Product Parameters

♦Based on single fire spot laser module

♦High output power 30W

♦High stability

♦0.22NA 105μm core multimode fiber

♦Parallel weld 2-Pin sealed package

♦Standard central wavelength 915,940,975nm

♦RoHS compliance

Product Application

♦Medical

♦Printing

♦pump source

♦Material processing

Product specification

Parameter	Min	Typ	Max	Unit	Conditions
Output Power	30	-	-	W
Centre Wavelength	-10	9XX	+10	nm	HR@ 1050-1150>25dB, HR@ 1060-1100>30dB
Spectral Width (FWHM)	-	4.0	6.0	nm
Threshold Current	-	0.5	0.9	A
Operating Current	-	12.0	13.0	A
Operating Voltage	-	5.4	6.0	V
Convention Efficiency	-	48	-	%
90% Power	-	0.18	-	NA
Wavelength shift vs. Temperature	-	0.3	-	nm/℃
Slop Efficiency	-	2.4	-	W/A
Storage Temperature	-30	25	70	°C	Non-Condensing
Operating Temperature	15	25	55	°C
Fiber Bend Radius	37.5	-	-	mm
Buffer Diameter	-	250	-	μm
Cladding Diameter	-	125	-	μm
Core Diameter	102	105	108	μm
Numeric Aperture	0.2	0.22	0.24	-
Fiber length	0.9	-	-	M
Protection Tube	0.9	-	1.5	mm
Fiber Connector	-	CO	-	-

Product Tags:

30W Uncooled Multimode Laser Diode

9XXnm Multimode Laser Diode

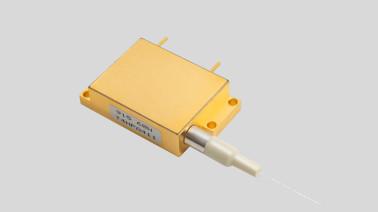

9XXnm 30W Uncooled Multimode Laser Diode Module Images
