T120W Series 808nm 100W 200um Uncooled Multimode Laser Diode Module

Product Categories

Wuhan CS Tec Co.,Ltd

Contact Now

Brand Name : CS

Model Number : 100W 808nm 200um

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Brand : CS

Application : bump source material processing

Output power (W) : 100W 808nm 200um

Local Service Location : None

warranty period : 1 year

Contact Now

Product Application

♦Medical

♦Printing

♦pump source

♦Material processing

Product specification

Parameter	Min	Typ	Max	Unit	Conditions
Output Power	-	100	-	W
Centre Wavelengt T120W	803	808	813	nm
Spectral Width (FWHM)	-	4.5	-	nm
Threshold Current	-	1.3	-	A
Operating Current	-	11.0	12.0	A
Operating Voltage	-	23.0	-	V
Convention Efficiency	-	40	-	%
95% Power	-	0.18	-	NA
Wavelength shift vs. Temperature	-	0.35	-	nm/℃
Slop Efficiency	-		-	W/A
Storage Temperature	-30	-	70	°C	Non-Condensing
Operating Temperature	15	-	55	°C
Fiber Bend Radius	37.5	-	-	mm
Core Diameter	197	200	203	μm
1064ISO	-	30	-	dB
Numeric Aperture	0.2	0.22	0.24	-
Fiber length	-	1.5	-	M
Protection Tube	-	0.9	-	mm
Fiber Connector	-	CO	-	-

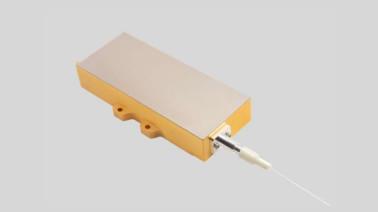

T120W Series 808nm 100W 200um Uncooled Multimode Laser Diode Module Images
