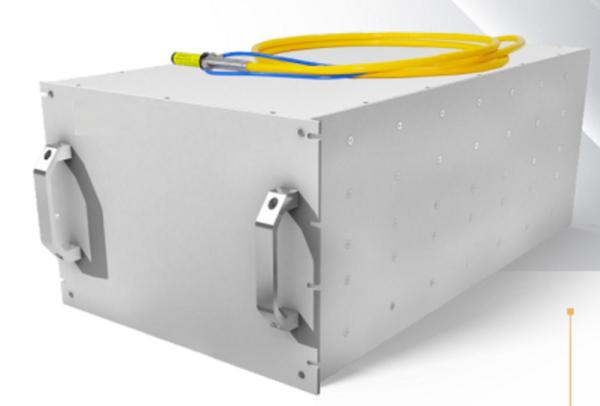

High Brightness OEM Laser Machine CW Laser Source 9000W 12000W

Brand Name : CS

Model Number : CS-YMM 9000/12000/20000

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Application : Application in scientific research

Laser model : CS-YMM 9000/12000/20000

Laser power : 9000/12000/20000

Laser brand : CS

Contact Now

Product introduction

Beam Combining Multi - Kilo Watt High Brightness CW Fiber Lasers applies unique high-brightness beam combining technology of DK laser. While maintaining high beam quality, the product achieves light weighting, modularity, compactness and high reliability through optimal design, and so adapts to complex and harsh environments. The output ﬁber core diameter can be customized in diﬀerent sizes, especially suitable for scientiﬁc research applications.

Product Features

♦At same output power, brightness is higher, beam quality factor M² is better than that of normal industrial products, and is only 1/3~1/2 of it

♦Optional for diﬀerent output ﬁber core diameters, suitable for diverse applications

♦Super light weighting and compact design, weight of multi-kilo watt products is less than 230kg, better than similar products and easy to be integrated

♦High reliability, High standard environment test passed (high temperature, vibration, damp and hot, etc.), Design customizable for extreme storage temperature

Product Parameters

Optical Parameters	YMM 9000	YMM 12000	YMM 20000
Output Power	9000W	12000W	20000W
Center Wavelength	1080±10nm	1080±10nm	1080±10nm
Operation Mode	CW/Modulation	CW/Modulation	CW/Modulation
Beam Quality M2	<3.5	<4	<5
BPP(mm·mrad)	≤1.21	≤1.38	≤1.72
Output Fiber Diameter	50µm	50µm	100µm
Spectral Width	<6nm	<6nm	<6nm
Power Range	10%~100%	10%~100%	10%~100%
Output Powe Instability	≤1.5%	≤1.5%	≤1.5%
Polarization State	Random	Random	Random
Operating Voltage	380V	380V	380V
Laser Power Consumption	<27kW	<36kW	<60kW
QBH Output Fiber Length	3m	3m	3m
Indicated Light Power	>0.1mW	>0.1mW	>0.1mW
Control Interface	RS485/Ethernet	RS485/Ethernet	RS485/Ethernet
Cooling	Water Cooling	Water Cooling	Water Cooling
Dimensions	900mm×455mm×500mm	900mm×455mm×580mm	900mm×455mm×900mm
Weight	<200kg	<230kg	<400kg
