OEM Laser Processing Head For Fiber Laser Welding Machine 4000W 6000W

Name: OEM Laser Processing Head For Fiber Laser Welding Machine 4000W 6000W
Brand: Raytool
Price: 1 USD

Brand Name : Raytool

Model Number : BM114

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Laser Power : 4000/6000W

Configuration : 100mm

Focus lens : 150mm ,200mm

Interface : QBH,QD

Contact Now

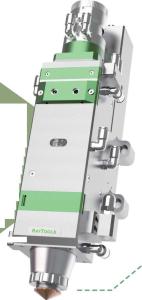

BM114 SERIES

Economical Medium and High Power Automatic Focusing Cutting Head

Power Rate:4000/6000W

♦High Efficiency Cooling

Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle, effectively protect the nozzleand ceramic part and the lifetime.

♦Auto-focusing

Auto-focusing to reducing human intervention. MAX focusing speed lOm/min, Repeat accuracy 50 nm.

♦High-Speed Piercing & Cutting

Pierces up to 25 mm mild steel in 3 sec @3000W

♦Large Clear Aperture

35mm clear aperture, effectively reducing stray light interference, guarante cutting quality and working life.

♦Portable and Durable

5.6KG , compact structure, reduce the mechanical requirements.

♦High Power Rating

Rated to 6.0 kW , with D37 lens group, and more strength to cut thick plate.

Product specification

Auto focus
Range	+10~-14mm
Acceleration	Max 10 m/s2
Velocity	Max 10 m/min
Accuracy	50μm
Fiber Interface	QBH,QD
Clear	35mm
Cover glasses
Collimation side	Φ38mm * 1.5 mm
Focusing side	Φ37mm *4.1 mm
Collimator Focal length	100mm
Focusing Focal length Aperture	150mm, 200mm
Nozzle Styles	Single, Double, Custom
Diameter of Nozzle tip	0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm, 4.0mm, 4.5mm, 5.0mm
Assist gas pressure	≤30 bar
Weight	~5.6kg
