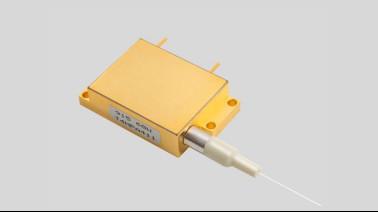

25W Uncooled Multimode Laser Diode Module 793nm Laser Diode

Name: 25W Uncooled Multimode Laser Diode Module 793nm Laser Diode
Brand: SkyEra
Price: 1 USD

China 25W Uncooled Multimode Laser Diode Module 793nm Laser Diode factory

Brand Name : SkyEra

Model Number : 25W 793nm 200um

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Brand : SkyEra

Application : bump source material processing

Output power (W) : 25W

Local Service Location : None

warranty period : 1 year

After Warranty Service : Online support Spare parts Field maintenance and repair service

Contact Now

Product parameters

♦Based on single fire spot laser module

♦High output power 25W

♦High stability

♦0.22NA 200μm core multimode fiber

♦Parallel weld 2-Pin sealed package

♦Standard central wavelength 793,808,880nm

♦RoHS compliance

Product application

♦Medical

♦Lighting

♦Pump source

♦Material processing

Product specification

Functional parameters are tested on condition that the heat sink temperature is 25 degree, contact resistance of the component and the heat sink is smaller than 1CM2 K/W.

Parameter	Min	Typ	Max	Unit	Conditions
Output Power	25	-	-	W
Centre Wavelength	-3	8XX	+3	nm	HR@ 1050-1150>25dB HR@ 1060-1100>30dB
Spectral Width (FWHM)	-	4.0	6.0	nm
Threshold Current	-	1.5	2.0	A
Operating Current	-	11.0	12.0	A
Operating Voltage	-	5.4	6.0	V
Convention Efficiency	-	40	-	%
90% Power	-	0.18	-	NA
Wavelength shift vs. Temperature	-	0.3	-	nm/℃
Slop Efficiency	-	2.5	-	W/A
Storage Temperature	-30	25	70	°C	Non-Condensing
Operating Temperature	15	25	55	°C
Fiber Bend Radius	37.5	-	-	mm
Buffer Diameter	-	320	-	μm
Cladding Diameter	-	220	-	μm
Core Diameter	197	200	203	μm
Numeric Aperture	0.2	0.22	0.24	-
Fiber length	0.9	-	-	M
Protection Tube	0.9	-	1.5	mm
Fiber Connector	-	CO	-	-
